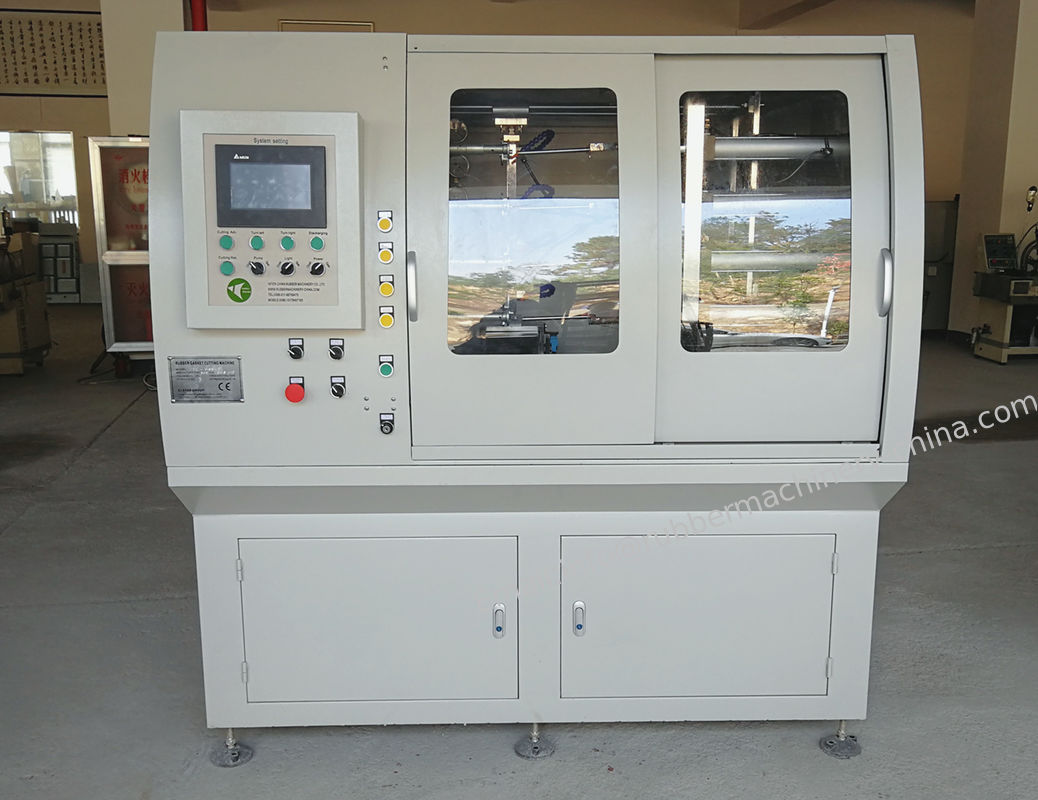

Mandrel cutting machine for latex belt purpose
Latex bands cutting machine;
Equipment for Latex belt elastic belt fitness belt yoga belt;
Latex is a kind of superelastic material, bright color, and easy to carry.
Due to these characteristics, Latex bands, or called stretch tape, yoga rope is a very popular exercise tool currently.
Our machine is just designed to cut(make) these latex bands with different thicknesses wanted.
Advantages of INTER CHINA'S machine:
1. High precision for each cut. Ensure the quality.
2. Much faster compared to the traditional cutting method.
3. Free of flashes, burrs;
Machine Process Chart :
PROCESS:
To produce the plain section gaskets, rubber tubes – already cut to length – are stretched onto mandrels. Loading and unloading of the tubes onto the mandrels is done quickly by a special unit and without any particular skill being required.
A knife carriage travels along the tubes, cutting the rings to the required length, either with slotting tools or circular knives.
The use of the most modern servo-technologies makes the mandrel machines even more versatile: knife penetration speed and carriage advance are fully free-programmable – for optimal processing of materials with different characteristics.
Automatic discharging.
Technical parameters:
| PERFORMANCE |
| Model No (Standard Series ) |
INC-200-2- Large sized-X |
| Nos of Spindle/Mandrel |
1 |
| Cutting rate max. |
80 cuts/min |
| Mandrel Rotation Speed |
0～2800 r/min |
| Cutting Precision |
≤±0.05mm |
Cutting ranges
(Tailor-made is accepted) |
Diameter |
～Φ700mm |
| Length |
～350mm |
| Thickness |
≤28mm |
| SPECIFICATIONS |
| Compressed Air Consumption |
20 L/min |
| Atmospheric Pressure |
0.5MPa～0.8MPa |
| Working Vacuum Degree |
≤-0.035MPa |
| Power Source |
1.Single Phasex220V/50HZ±5%
2.Three Phasex380V/50HZ±5% |
| Total Power |
3KW |
| Device Weight |
≈820 KGS |
| Device Size (L×W ×H) |
1450×1350×2100mm |
| SPARE PARTS |
| Cutting Tools |
(1) circular knife:Φ80×Φ25.4×0.4mm (hard alloy) |
| (2) strip knife:80×7×0.3mm (hard alloy) |
| Cutting Mandrel/spindle |
fit product size for cutting |
Order Options:
-
Nos of mandrel: 1/2/3/4 are available;
-
Machine Painting Color;
-
Range of Cutting Length;
-
Range of Cutting Diameter;
-
Water cooling system;
-
Tail Bracket (As the supporting device for longer length products)
-
Auxiliary pushing device for loading;
-
Auxiliary splice device for unloading;
